Launder-Type In-line Degassing System

Launder-Type In-line Degassing System
Contact Us

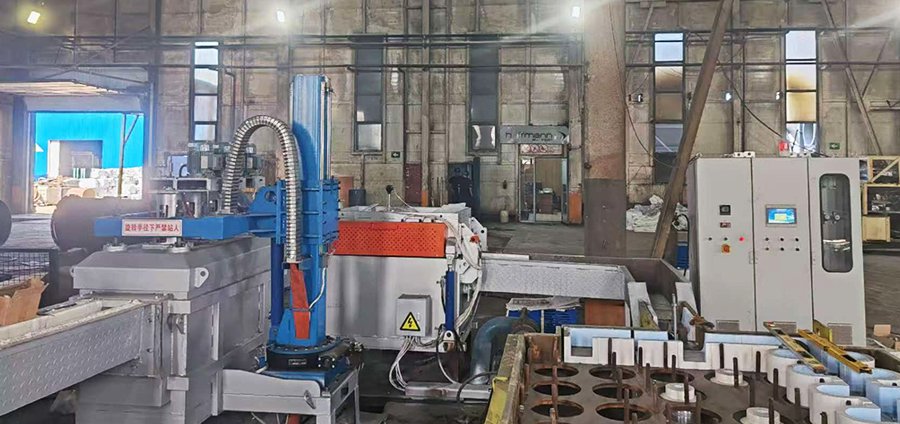

The launder-type in-line degassing system is installed in the molten aluminum transfer launder for continuous melt treatment. A rotating graphite rotor introduces argon or nitrogen into the molten aluminum and disperses the gas into fine, uniform bubbles to remove hydrogen and non-metallic inclusions, helping improve melt cleanliness.

Working Principle
  • Molten aluminum from the holding furnace flows into the launder-type degassing system.
  • The molten aluminum enters the sealed degassing chamber.
  • The rotating graphite rotor disperses argon or nitrogen into the melt as fine bubbles.
  • The bubbles capture hydrogen and non-metallic inclusions as they pass through the molten aluminum.
  • The bubbles and captured impurities rise to the melt surface for removal.
  • The treated molten aluminum flows to the filtration system or casting equipment.
Main Components

The degassing system mainly consists of:

  • Control cabinet
  • Degassing chamber
  • Rotating graphite rotor assembly
  • Lifting mechanism
Parameters
Operating Conditions Average enclosure outer-wall temperature rise ≤65°C
Molten aluminum temperature 700–740°C
Max. processing capacity 10 t/h
Rotary System Rotor speed range 100–500 rpm
Degassing Performance Molten aluminum flow rate ≤10 t/h
Inlet hydrogen content ≥0.30 ml/100g
Molten aluminum temperature 690-730℃
Degassing Efficiency: 30%–50%
Gas Requirements Working gas Ar / N₂
Nitrogen purity ≥99.996%
H₂O content ≤3 ppm
O₂ content ≤5 ppm
Gas flow rate 8–11 Nm³/h
Gas supply pressure 6 bar
Electrical Requirements Power supply 380 V / 50 Hz
Total power 5 kW
Huitai Technology is a manufacturer specializing in equipment for aluminum melting, casting and billet-processing operations. With engineering and manufacturing capabilities covering equipment design, fabrication, machining, welding, assembly and control-system integration, Huitai focuses on customized equipment and line configurations rather than one-size-fits-all solutions.
Equipment is configured around the customer’s production requirements, plant layout and existing line, with installation, commissioning and technical support provided according to the project scope.
