Automatic Aluminum Billet Circular Saw

Video

•

•

•

•

•

The automated control enables continuous billet sawing and material transfer with reduced manual handling. The system integrates:

• Automatic billet feeding system
• Multi-billet sawing system
• Cut-to-length positioning system
• Chip extraction and briquetting system
• Finished billet conveying and stacking system
• Laser / dot-peen marking system

• Applicable Billet Diameter: Ø305 mm (example)
• Production Capacity: 45–55 t/h
• Cut Length Accuracy: ±2 mm

• Billets are unloaded from the casting pit
• Billets are fed from the storage rack
• The automatic transfer system moves the billets onto the conveyor
• Roller conveyors transport the billets to the saw head
• The billets are clamped and positioned to the required cutting length
• Circular sawing is performed with minimum quantity lubrication (MQL)
• Aluminum chips are extracted and separated

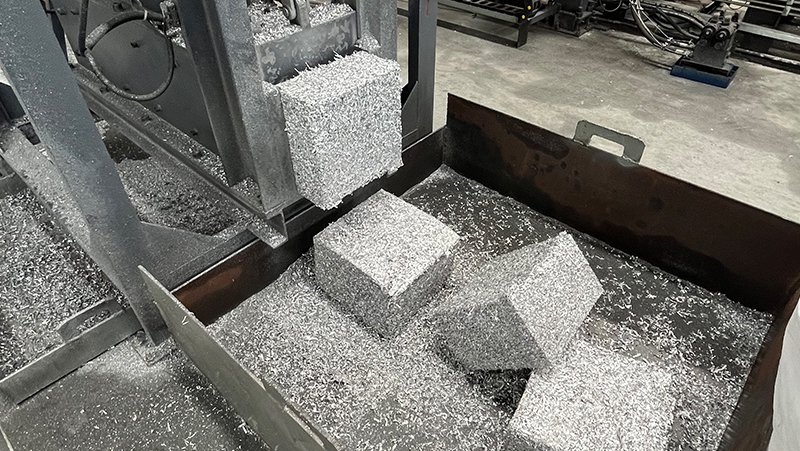

• Collected chips are compressed into briquettes
• Cut billets are conveyed to the downstream handling area
• Billets are marked by the configured marking system
• The line resets automatically for the next sawing cycle

• The integrated production-line configuration reduces manual material handling throughout the sawing process.
• Automated control supports continuous billet sawing operation to improve production efficiency.
• The positioning system delivers precise billet cutting length with a deviation of within ±2 mm.

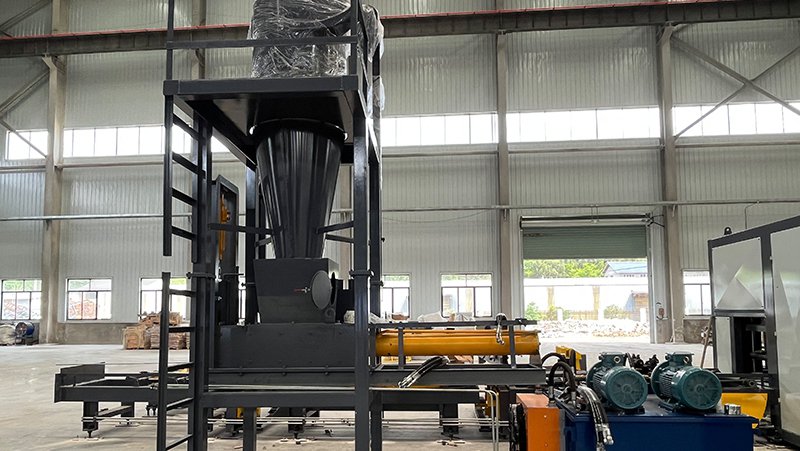

• An integrated chip collection and briquetting system recycles aluminum chips produced during sawing for subsequent handling and recycling.
• The enclosed chip-handling system minimizes dust and scattered aluminum chips in the work area.
